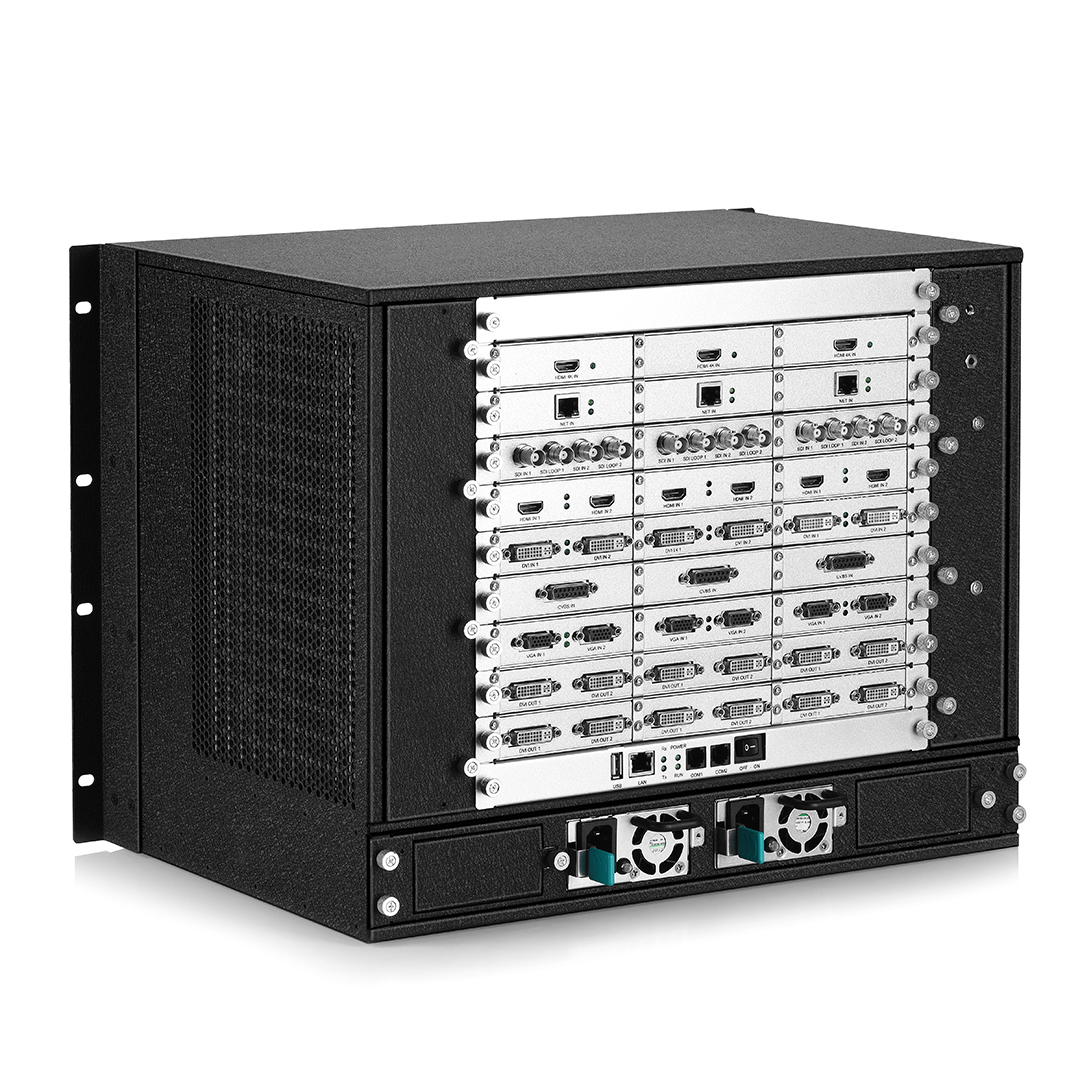

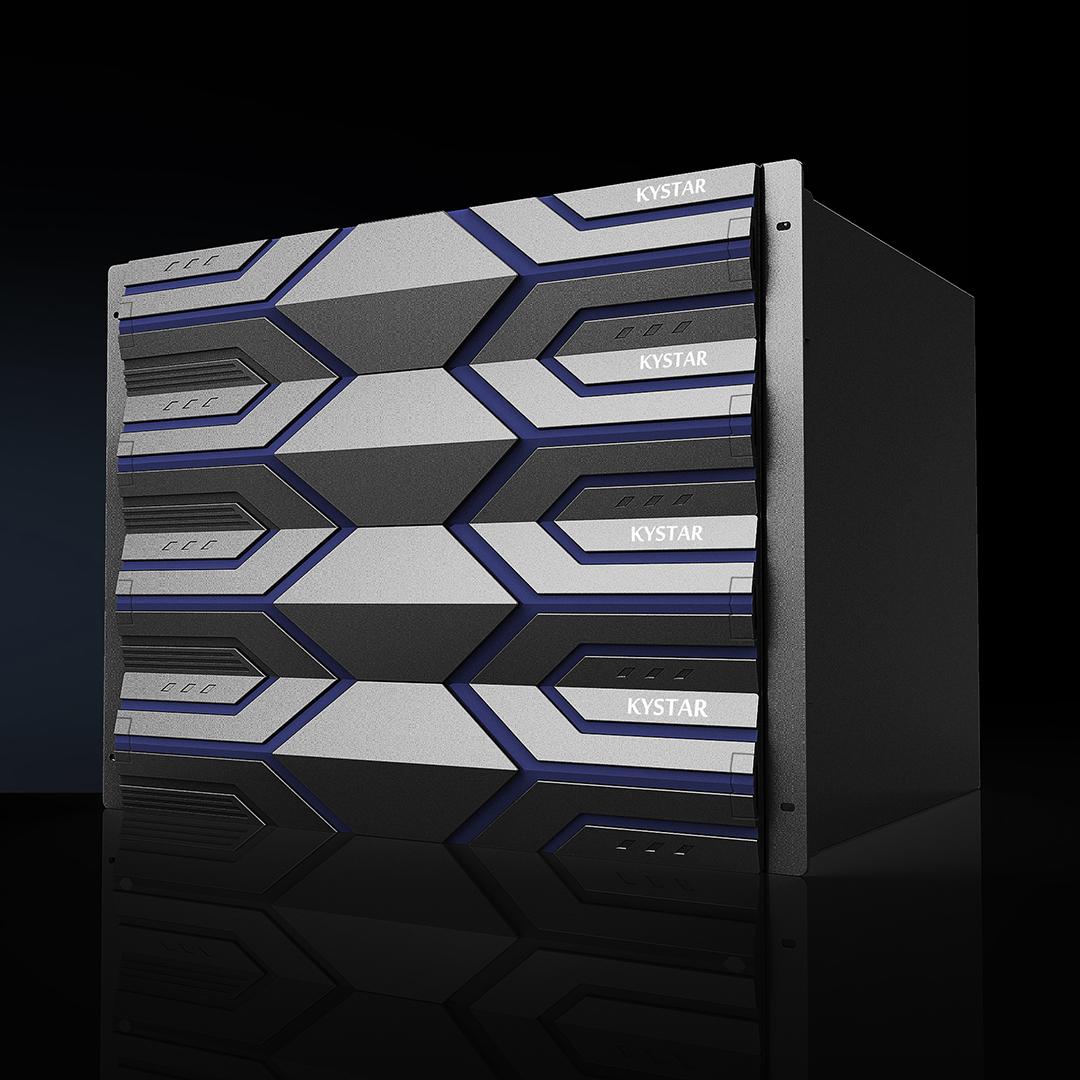

Bộ Xử Lý Hình Ảnh KYSTAR KS9000

Functional characteristics:

- Single output channel can support up to 72/288 HD images simultaneously, and the images can be arbitrarily overlapped and roamed.

- Supports image and text overlay function, no additional devices can add pictures and text on the screen

- Supporting character overlay, adding text identifier to input signal

- Support for changing device EDID information

- Support for Mobile/Flat App Control

Input/Output Interface:

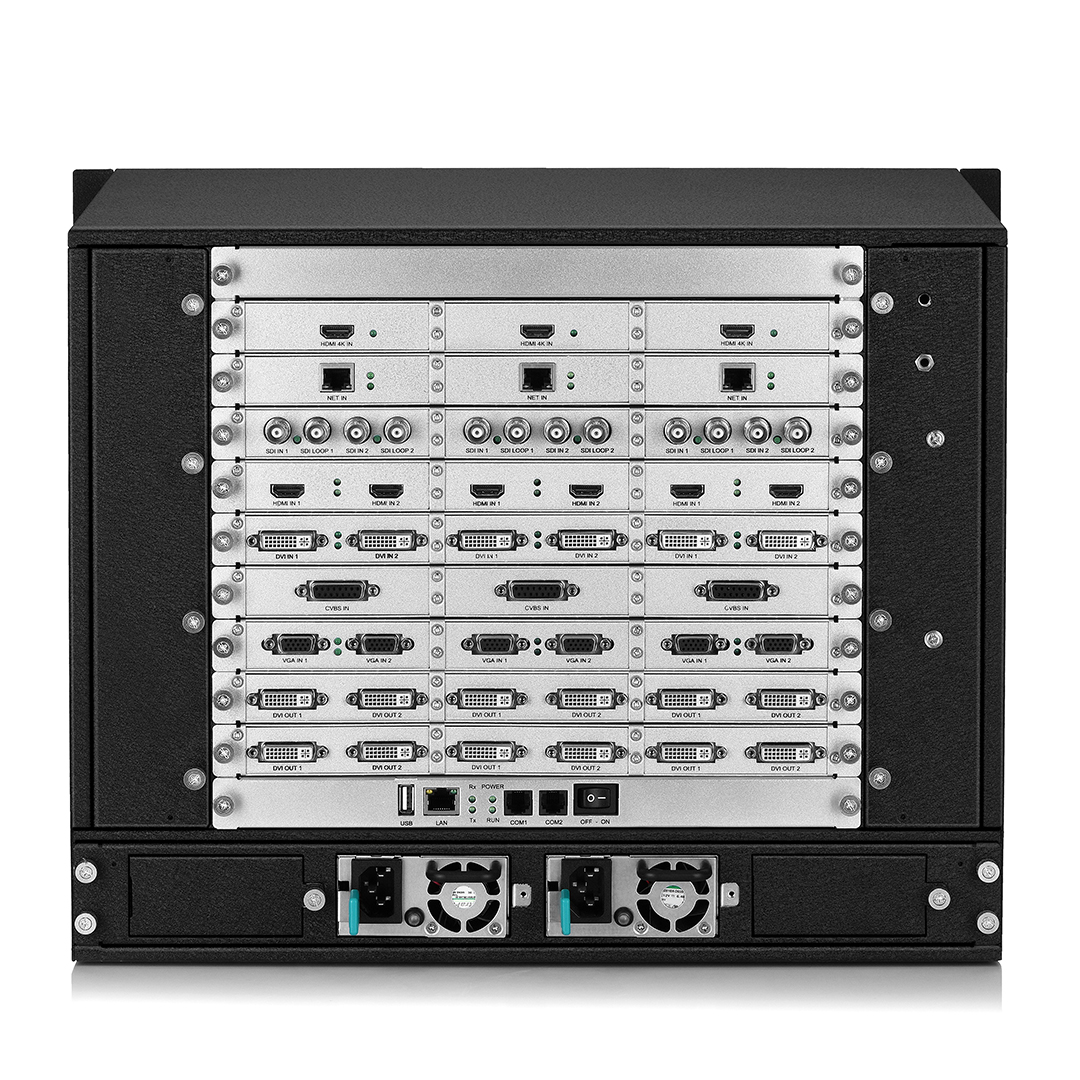

- Input:max 54 pcs inputs, Support DVI, HDMI, VGA, CVBS, SDI, IP, HDMI-4K

- Output:max 30 pcs outputs, All output is DVI

- Control port: RS-232 （DB-9, RJ-45

Load:

- 2.3 million custom (single output)

- Max width:3840 (single output)

- Max height:1920 (single output)
