Bộ Xử Lý Hình Ảnh 3 Trong 1 KYSTAR LS4 PRO

Bộ Xử Lý Hình Ảnh 3 Trong 1 KYSTAR LS4 PRO

Functional characteristics:

- Supporting double-windows, preset PIP and POP display
- With DVI loop out, support multi-machine cascade infinite splicing
- One-click readback function,
- One-click restore function, no need to re-debug the card when replace card
- Hardware screen adjustment, no need of computer, make the operation easier
- Seamless switching of fade-in and fade-out effects

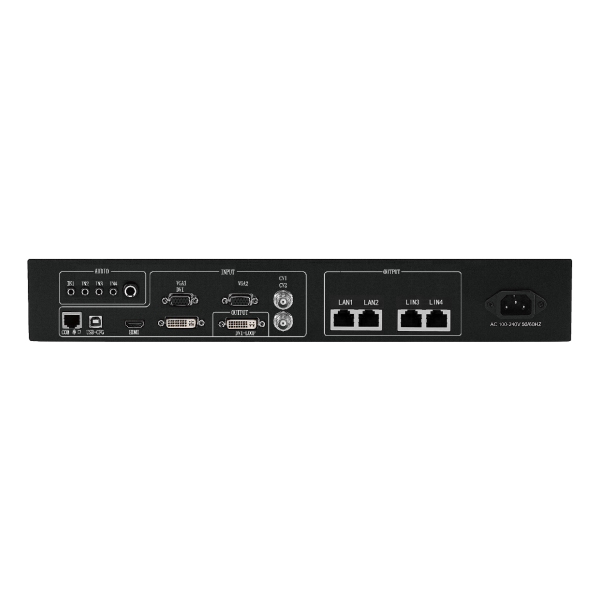

Input/Output Interface:

- Input:DVI *1, HDMI *1, VGA *2, CVBS *2, AUDIO *4
- Output:Gigabit network port*4 DVI LOOP*1 AUDIO*1
- Control port:USB-CFG *1, COM *1

Load:

- Max resolution:2.5 megapixels
- Max width:3840
- Max width:1920
