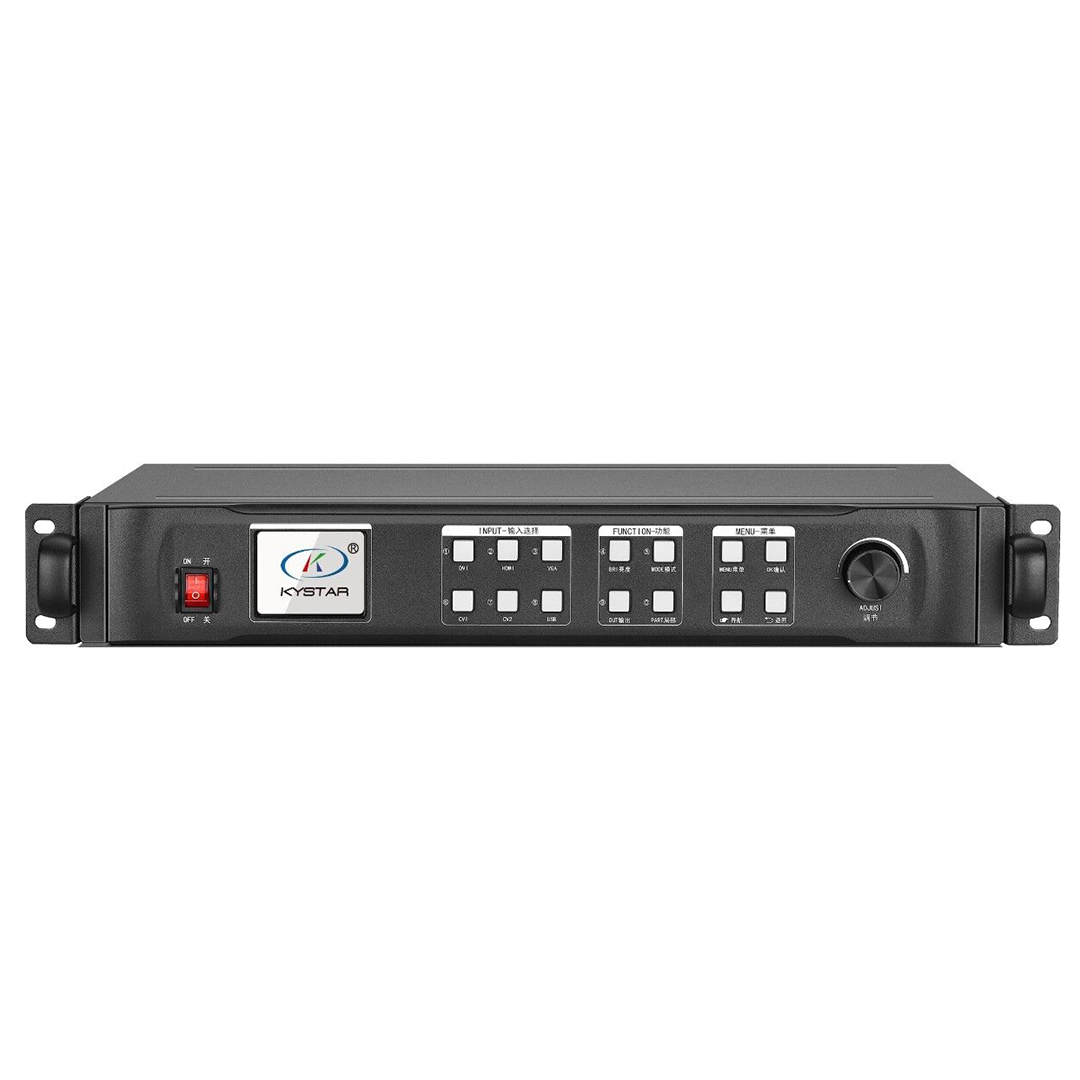

Bộ Xử Lý Hình Ảnh 3 Trong 1 KYSTAR LS4

Splicing processor LS4 product specification

Overview:

LS4 specifically for the LED display scheme launched a set of professional video processor, integrated led send card, offline player in one, highly integrated triple send controller, a device can easily handle large screen, greatly facilitate the LED Scenario configuration

Functional features:

- Professional Video Processor:
+ HD Multi Format Signal input
+ Transient or fading transitions between arbitrary signals
+ Arbitrary free Zoom Display

- Integrated LED sending card：
+ 4 network ports output, can be directly driven 236000 pixel display, widest 3840, highest 1080.
+ Support without computer direct operation,3 Step screen

- High-performance offline Player:
+ Support for USB playback, perfect support for a variety of video, image formats
+ Can be offline scheduled tasks, according to the user set time to automatically play or switch signals

- with audio input and output:
+ Two-channel audio input, one-channel audio output
+ Supports video and audio switching

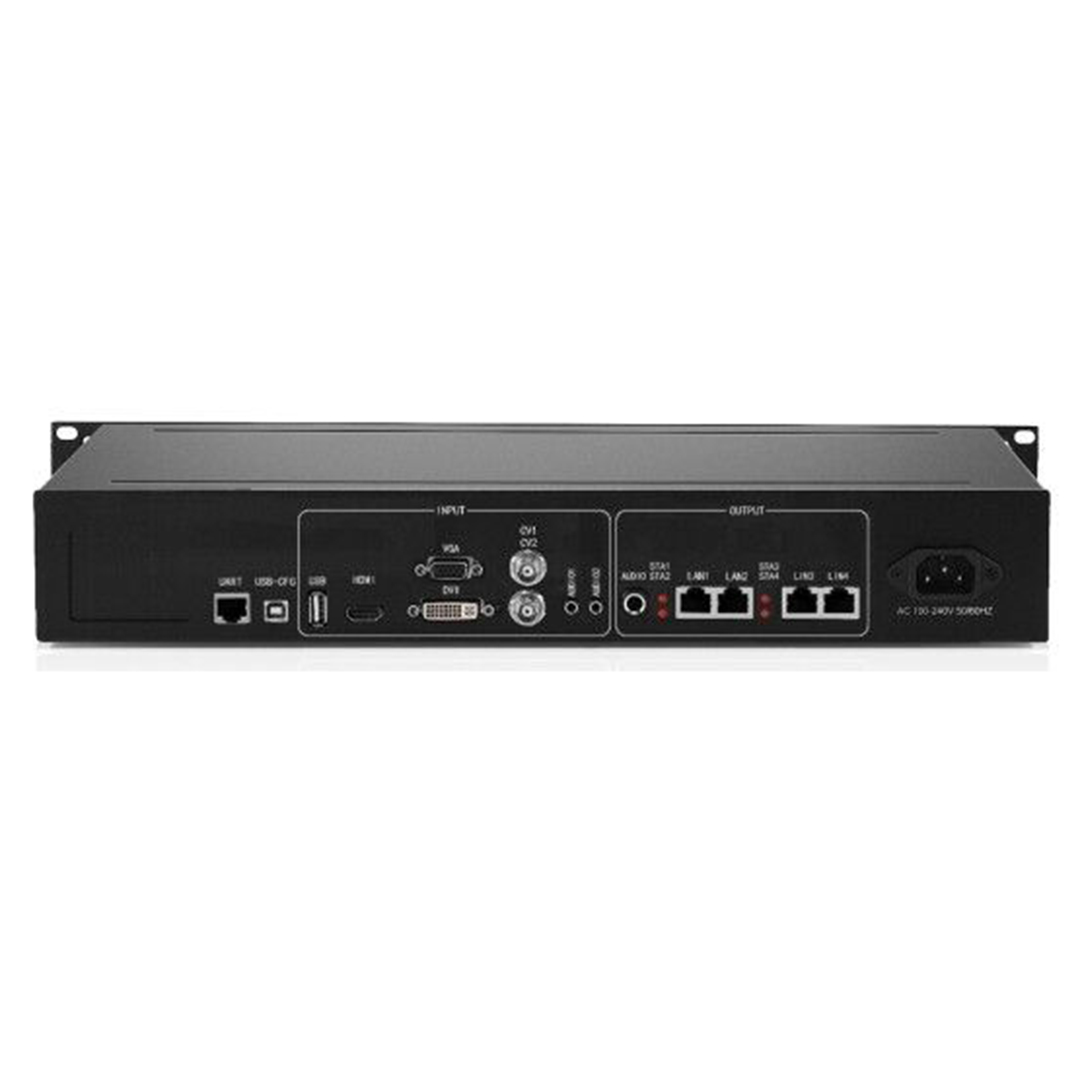

Input/Output Interface:

- Input:DVI *1, HDMI *1, VGA*1, CVBS *2, USB *1, AUDIO *1
- Output:Gigabit network port*4 AUDIO*1
- Control port:USB-CFG *1, COM *1

Load:

- Max resolution:2.36 megapixels
- Max width:3840
- Max width:1080
