Bộ Xử Lý Hình Ảnh KYSTAR U1A

Video processor U1A product specification

Summary:

The U1A is designed to address the limitations of large screen control systems in image processing, picture control and signal format conversion. The industry's top design technology is in line with international and industry standards.

The whole machine can carry 1920 x 1200 load, which can meet the needs of most small and medium-sized projects.

Functional characteristics:

- 2 channel programming output channel, the most wide band of 1920 pixels, with a maximum load of 1200 pixels.
- Any part of the signal source is intercepted and displayed.
- Support multiple high definition signal inputs
- Executable offline planning tasks
- can save 5 scene modes, one key call.
- Support direct cut and fade in, no black screen, Caton.
- Panel recognition source status
- Support one button black screen / stati.
- Support PC software control.
- Support brightness 0-255 adjustment
- Two LED sending cards can be built.

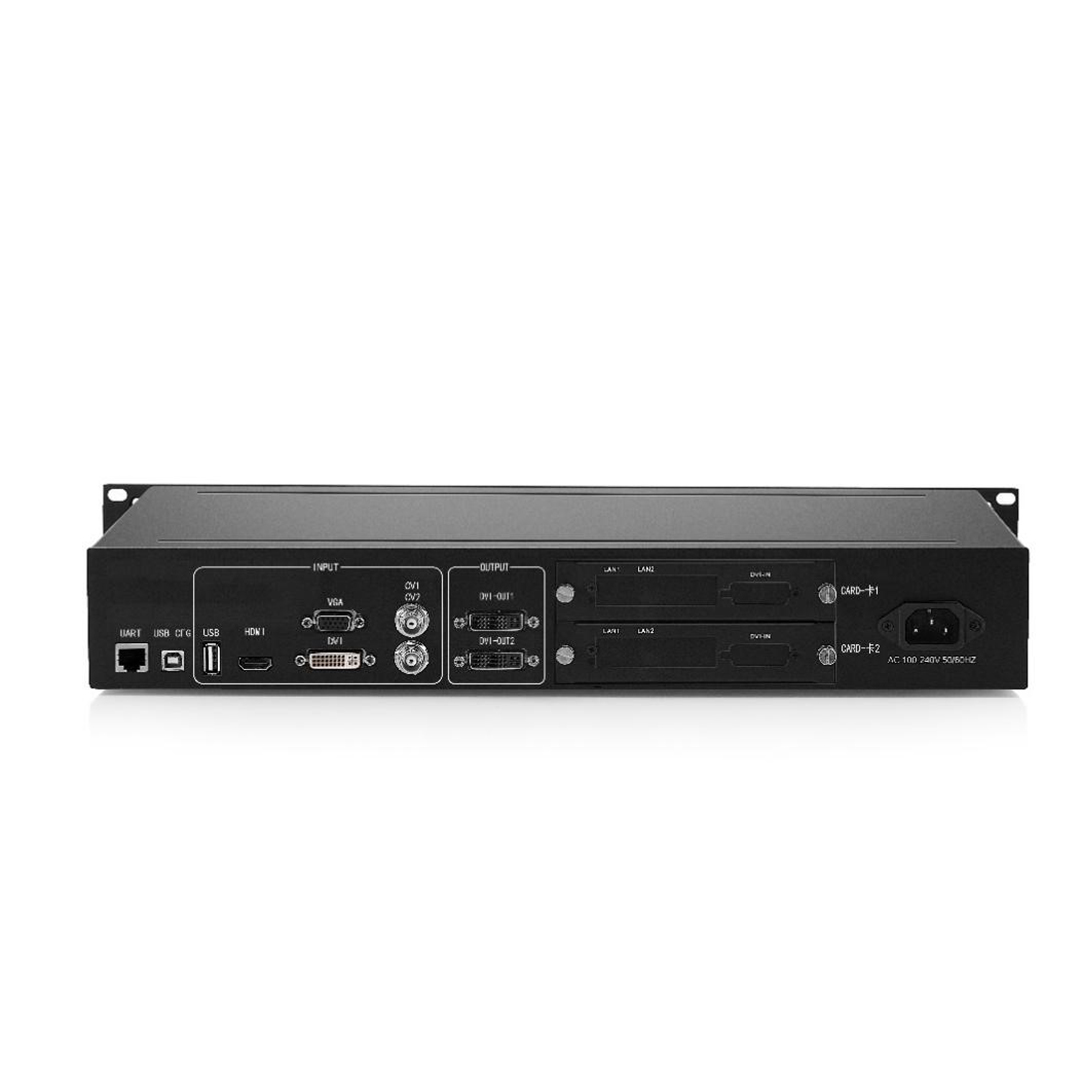

Input/Output Interface:

- Input: VGA*1, USB*1, DVI*1, HDMI*1, CVBS*2
- Output: DVI*2
- Control port: USB-CFG*1 UART(RJ-45)*1

Load:

- 1920*1200
