Splicing processor U6 product specification

Overview:

The U6 uses CPT+FST splicing technology designed for small-pitch LED displays to ensure splicing uniformity and synchronism. It is a high-end video processing equipment for LED large screen display, show and rental, conference room, studio and other markets. It adopts the industry's top design technology and meets international and industry standards.

The custom load of 10.4 million pixels in the whole machine meets most of the on-site needs. U6 has a variety of monitoring modes, switching modes, complete backup, safe and reliable.

Functional characteristics:

- Four output port splicing, 10.4 million pixels custom, horizontal maximum 15360 pixels, vertical maximum 7680 pixels
- Arbitrary layout of six pictures, easy to complete the centralized control of the main screen, side screen, sky screen and ground screen
- Support signal echo, real-time view of input and output signals through software
- Support 4K Ultra HD signal processing
- Multiple sets of editable global image overlays
- Support seamless switching of signals and modes, providing more than ten transition effects
- Support for brightness keying, image transparency adjustment and edge feathering
- Support multi-level input signal hot backup, multi-machine cascaded output
- Perform any partial interception of the signal source
- Custom EDID
- Pre-stored 32 scene modes, one-click call
- Support one button black screen / still

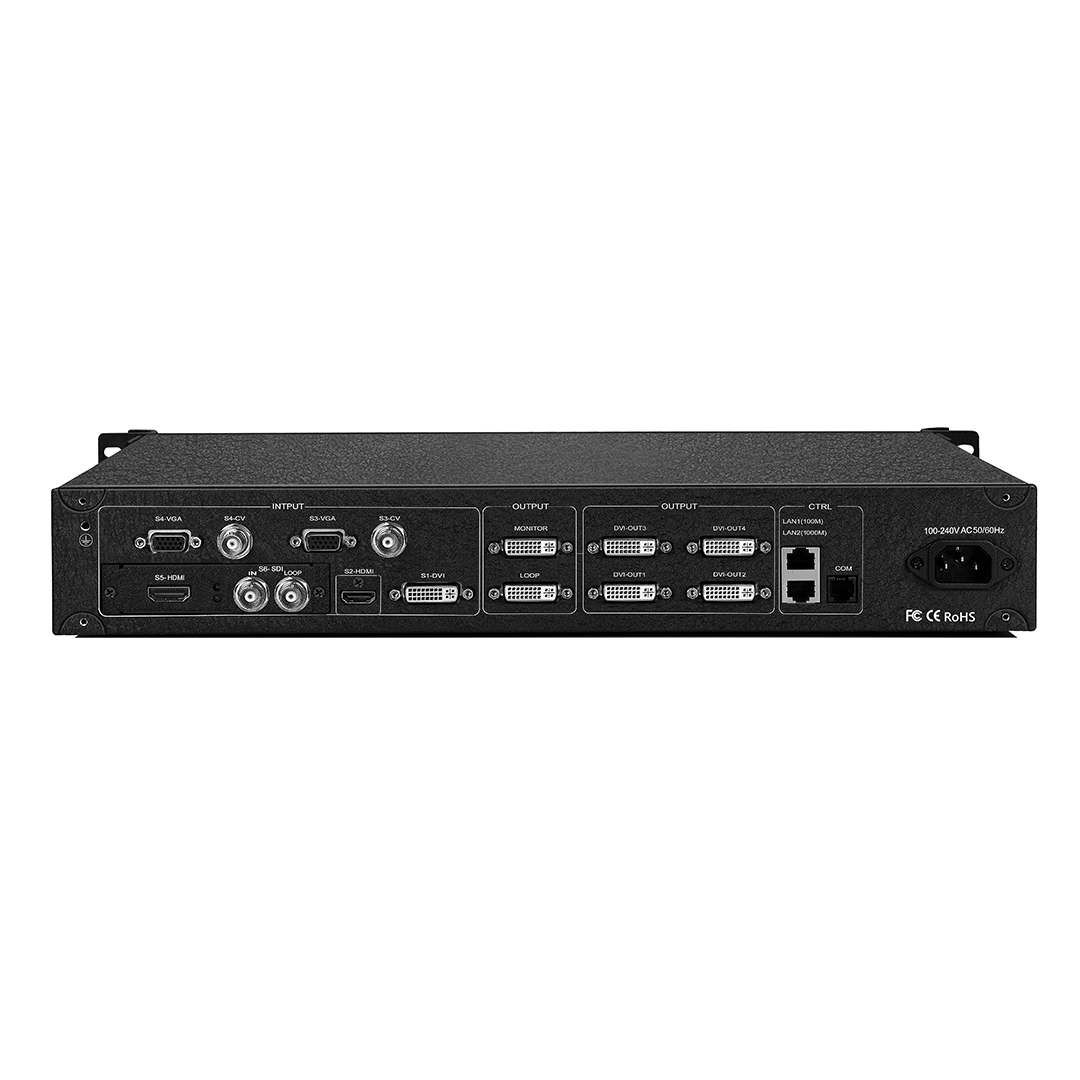

Input/Output Interface:

- Input: DVI*1, HDMI*2, SDI*1, VGA*2, CVBS*2
- EX input: DVI*2, HDMI*2, CVBS*2, HDMI-SDI *1 (include SDI loop*1) SDI*2 (include SDILOOP*2) HDMI-4K*1
- Output: DVI*4, Monitor*1, DVI-LOOP*1
- Control port: RS-232(DB-9)*1, RJ-45*2

Load:

- 10.4 million custom
- Max width:15360
- Max height: 7680
