Card Phát KYSTAR ES2

Small Send ES2 Product Specification

Summary:

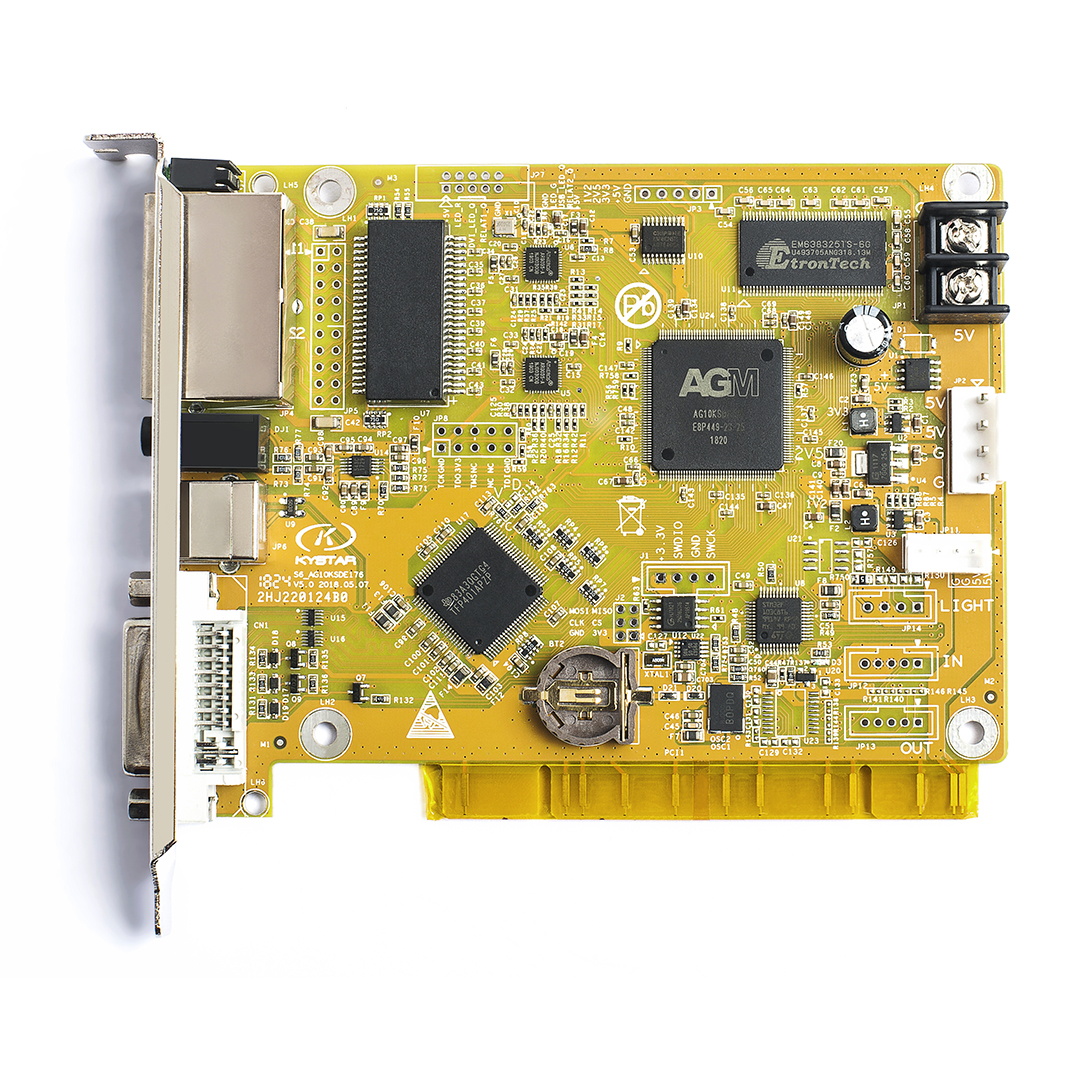

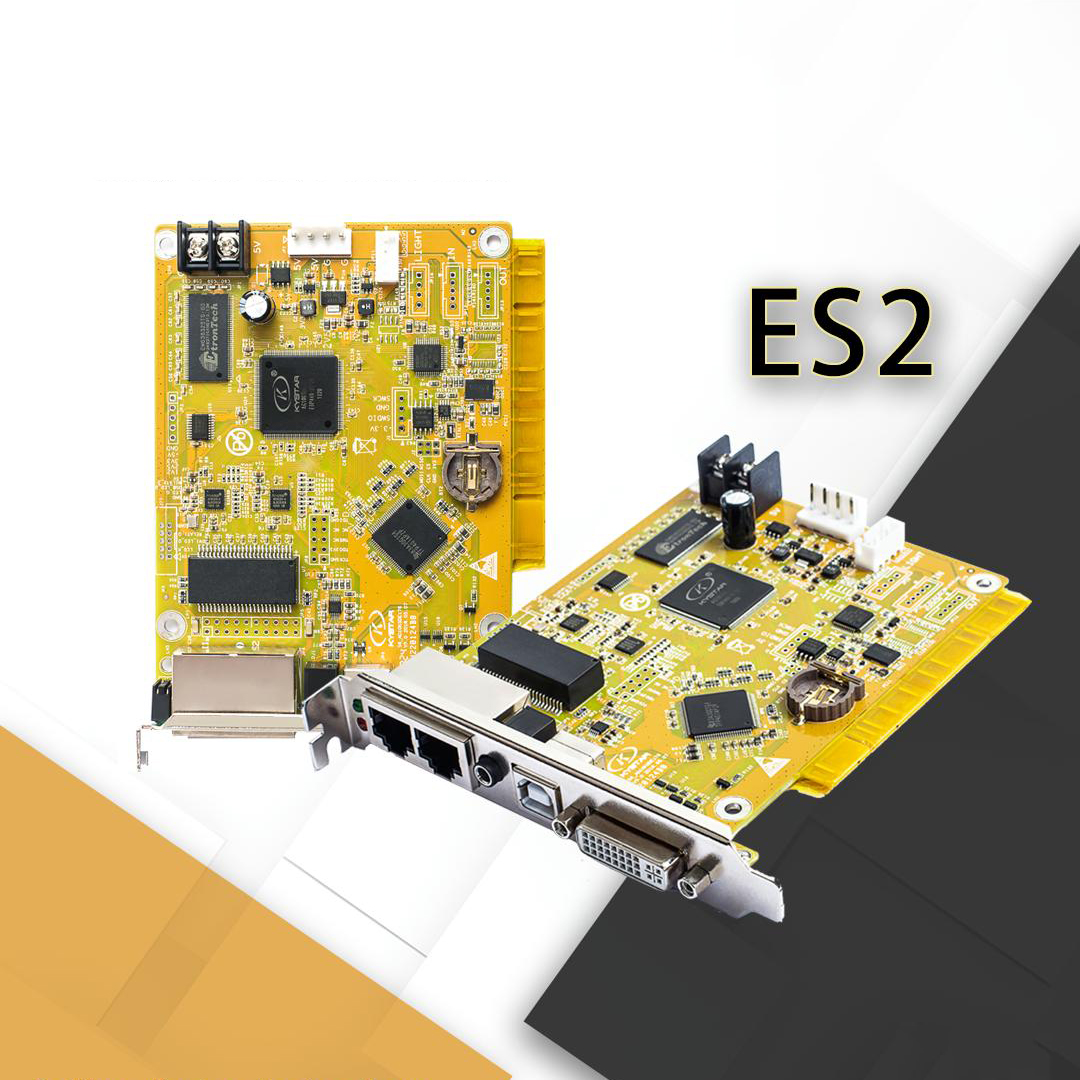

KYSTAR ES2 sending card is an important part of the main control system of LED. It is used to receive data from computer and other devices, and convert it into network signal and transmit it to receiving card. ES2 sending card adopts the industry's top design technology, in line with international and industry standards.

With a variety of power supply mode, it is more convenient to use.

Functional characteristics:

- One DVI video input and two network ports output.
- One way stereo audio input, with the use of multi-functional card transmission audio.
- The single card carries 1.31 million pixels, and the aspect ratio can be set arbitrarily, with a maximum width of 4000 and a maximum height of 2000.
- Supports the function of storing backup data and realizes one-click repair.
- Support EDID management.
- Support color rendition function.
- Supports power connection fault protection function.
- It meets the EU ROHS standard.
- Through CE, FCC certification.

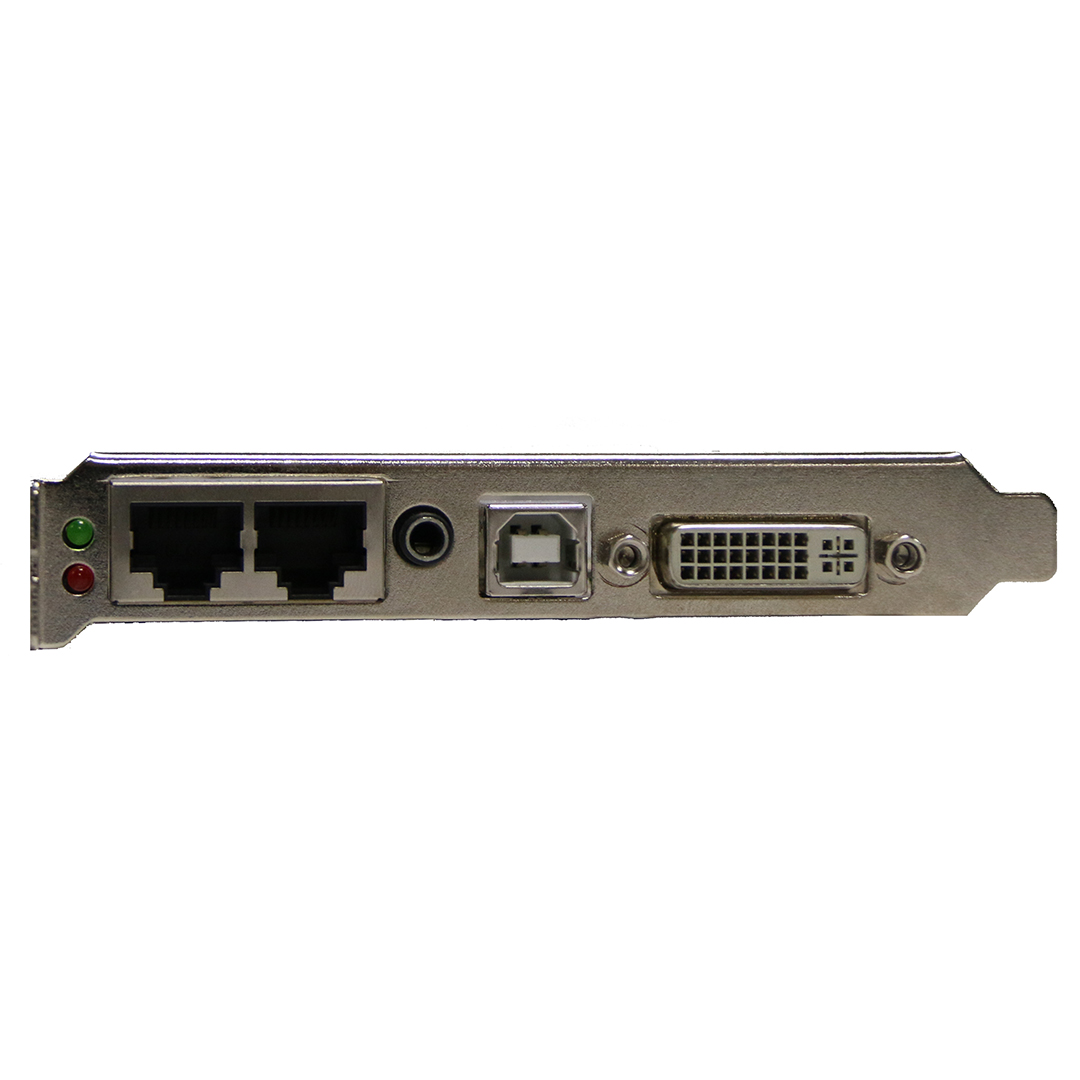

Input/Output Interface:

- Input Interface:DVI *1, AUDIO Output
- Interface: Gigabit Port*2
- Control Port: USB-CFG *1

Load:

- Max resolution: 1.3 megapixels
- Max width: 3840
- Max width: 1920
